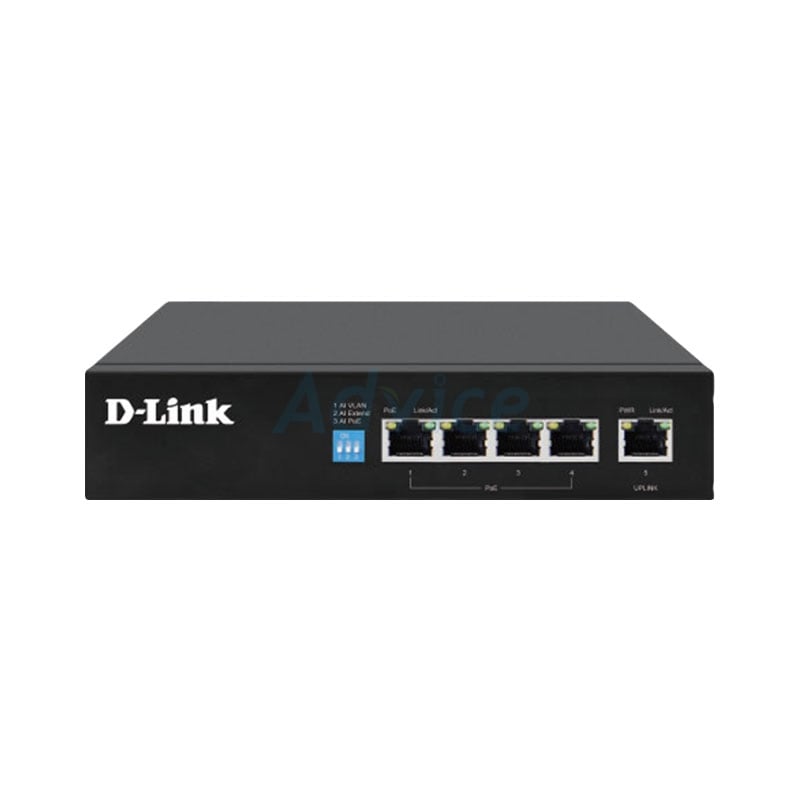

Gigabit Switching Hub 5 Port D-LINK DGS-F1005P-E (7,4 POE,+1 Uplink)
Product specification
- Standards and Protocols : IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az, 802.3 af/at
- Interface
- 4x 10/100/1000 BASE-T PoE ports
- 1x 10/100/1000 BASE-T Uplink port
- Switching Type : Unmanaged
- Switching Capacity : 10Gbps
- Casing : Metal
- Package Contents
- DGS-F1005P-E
- Power Adapter
- Installation Guide
- 60W PoE budget
- Supports IEEE 802.3af/at PoE to Power PoE capable network devices
- Supports transmission distance up to 250M
- Lightning protection 6KV
- Smart Features: Extend, VLAN, and PoE
- Plug & Play Installation
ราคา
฿1,210.00ราคารวม VAT · อัปเดตล่าสุด 25 ธ.ค. 2566
ช่องทางการชำระเงิน
- โอนเงินผ่านบัญชีธนาคาร
- คิวอาร์โค้ด (QR Payment)
- บัตรเครดิตและบัตรเดบิต (Credit, Debit Card)
| Brand | D-LINK |
| Model | DGS-F1005P-E |
| Network Interface | • 4 10/100/1000 BASE-T ports • 1 10/100/1000 BASE-T Uplink port |
| Standards and Protocols | • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) • ANSI/IEEE 802.3 NWay auto-negotiation • IEEE 802.3x ow control |
| Transmission Method | Adopt Store-and-forward |
| Packet Buffer Memory | • 10M port maximum 14800pps • 100M port maximum 148800pps • 1000M port maximum 1488000pps |
| Switch Fabric | • 10 Gbps |
| Buffer Architecture | Auto MDI/MDI-X adjustment on all ports |
| Throughput | • Fast Ethernet • 100 Mbps • Gigabit Ethernet • 1000 Mbps |
| LED Indicators | Link/Activity |
| PoE | PoE Standards : EEE 802.3af,IEEE 802.3at PoE-Capable Ports : Ports 1 to 4 Power Budget : 60 W (30 W max. per PoE port) |
| Power Supply | • Internal power PSU: 60W |
| Environment | Operating: 0% to 95% RH non-condensing Storage: 0% to 95% RH non-condensing |
| Certifications | • CE • FCC |
| Package Contents | N/A |
| Dimension | (W x D x H) : 19.00 x 13.10 x 4.00 cm |
| Net Weight | 1.00 KG |
