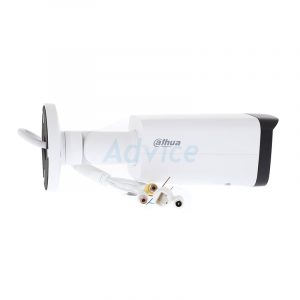

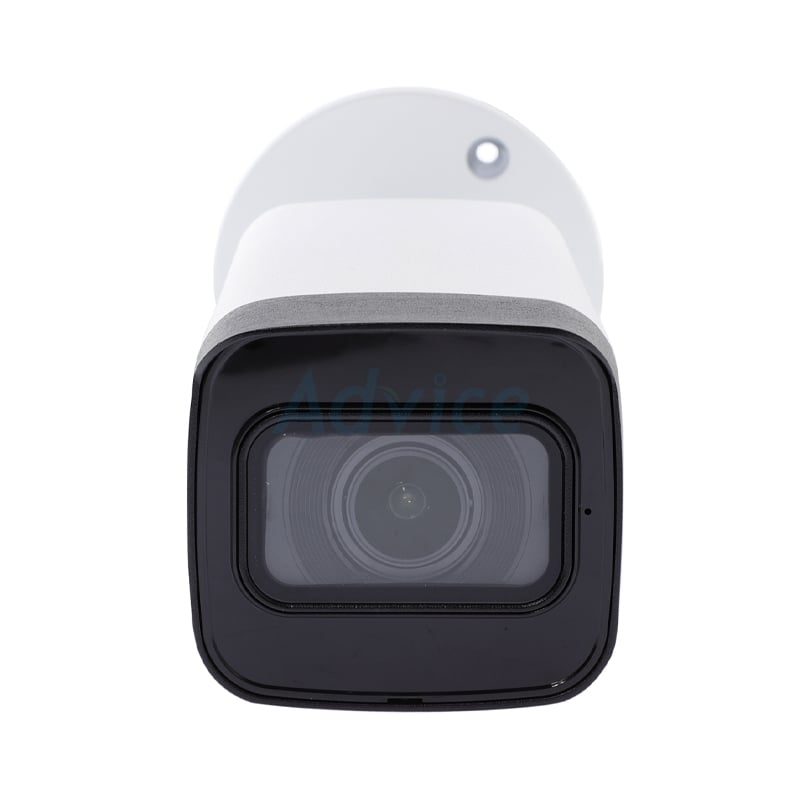

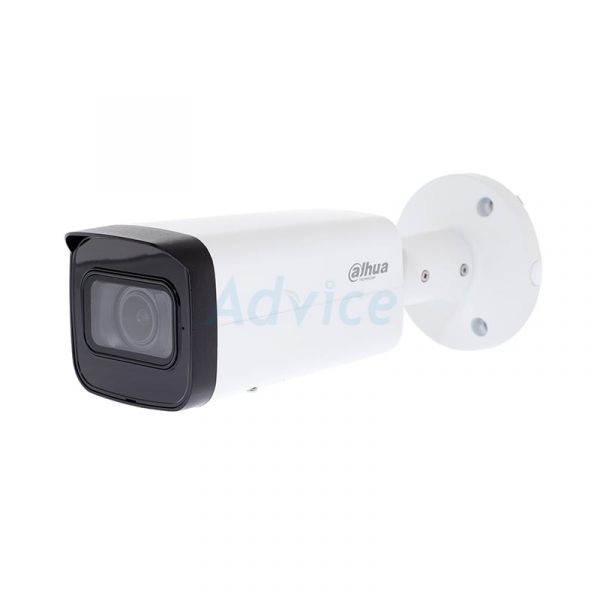

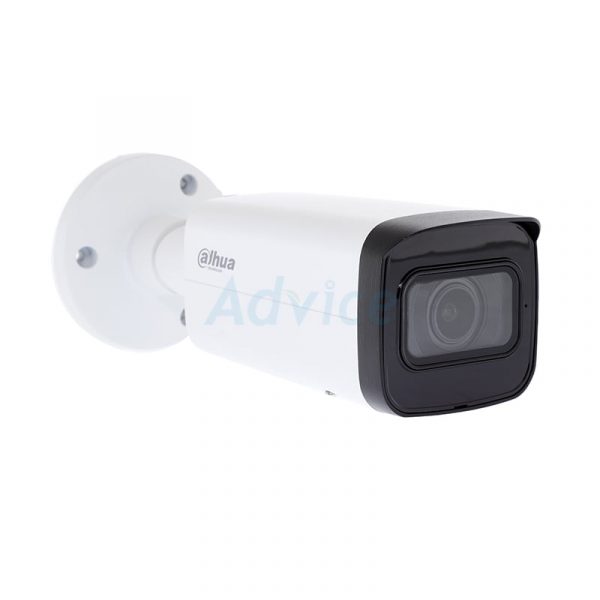

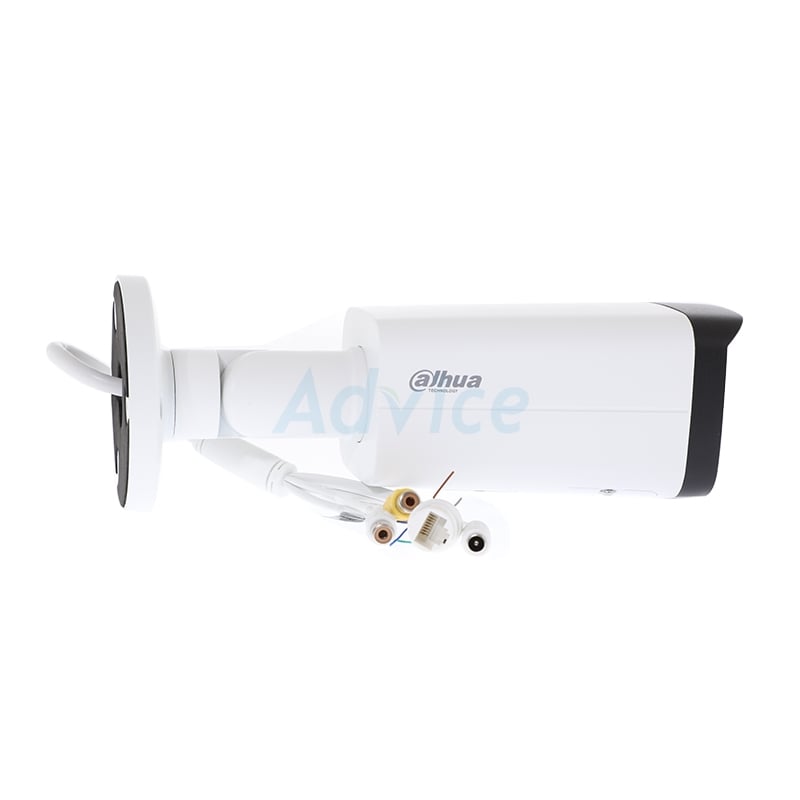

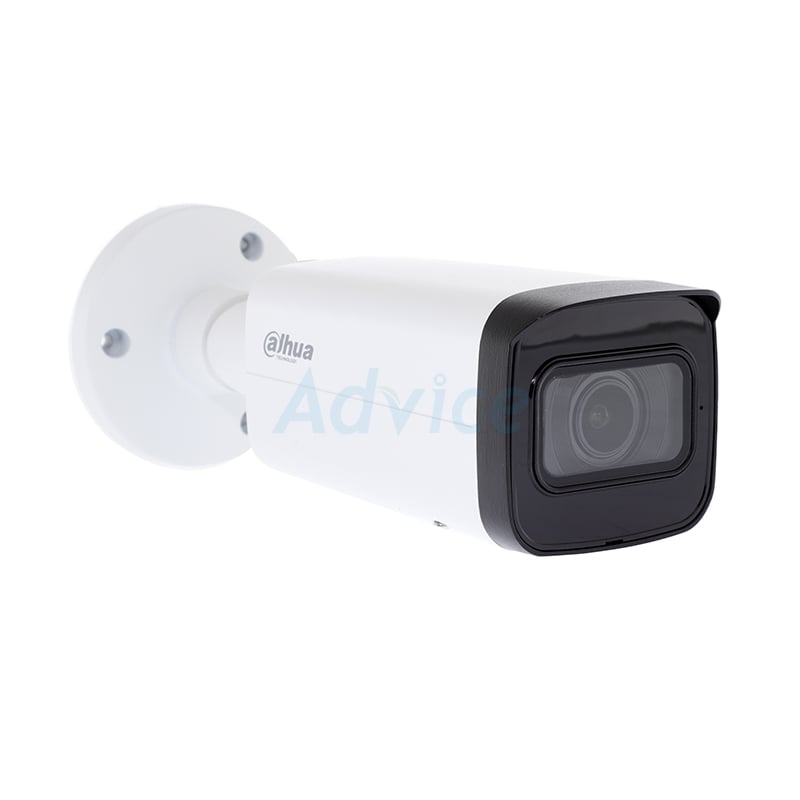

CCTV 2.7-13.5mm IP Camera DAHUA#HFW2241T-ZAS

Product specification

Image Sensor : 2MP , 1/2.8″ CMOS
Max. Resolution : 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Lens Type : 2.7-13.5mm
Video Output : Network Camera
IR Distance : 60m
Frame Rate
- Main stream: 1920 × 1080@(1–25/30 fps)
- Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Day/Night Mode : Auto(ICR)/Color/B/W
Audio Port : Built-in mic
Protection : IP67
Casing Material : Metal

ราคา

฿3,790.00

ช่องทางการชำระเงิน

Brand	DAHUA
Model	HFW2241T-ZAS
Image Sensor	1/2.8″ CMOS
Lens	Motorized vari-focal
Lens Mount	14 phi
Focus	0.8 m (2.62 ft)
Zoom	N/A
Angle of View	Horizontal : 108°–30° Vertical : 56°–17° Diagonal : 131°–35°
Adjustment Angle	Pan : 0°–360° Tilt : 0°–90° Rotation : 0°–360°
Shutter	Auto/Manual 1/3 s–1/100,000 s
Minimum Illumination	0.002 lux@F1.5 (Color, 30 IRE) 0.0002 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on)
Noise Reduction	3D NR
IR	60 m (196.85 ft)
Day/Night	Auto(ICR) / Color / B / W
S/N	>56 dB
WDR	120 dB
Video Resolution	• 1080p (1920 × 1080) • 1.3M (1280 × 960) • 720p (1280 × 720) • D1 (704 × 576/704 × 480) • VGA (640 × 480) • CIF (352 × 288/352 × 240)
Video Compression	•H.265 •H.264H • H.264 • H.264B • MJPEG (Only supported by the sub stream)
Frame Rate	25/30 fps
User/Host	6 (Total bandwidth: 36 M)
Storage	FTP; SFTP; Micro SD card (support max. 256 GB)
Interface	1 x RJ45
Reset Button	N/A
Alarm	• No SD card • SD card full • SD card error • Network disconnection • IP conflict • Illegal access • Motion detection • Video tampering • Tripwire • Intrusion • Audio detection • Voltage detection • Defocus detection • External alarm (Only – ZAS supports) • SMD • Security exception
ONVIF	Support
Protocols	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP;SNMP
Function	N/A
Power	12 VDC/PoE (802.3af)
Power Consumption	Basic : 2W (12 VDC); 2.6 W (PoE) Max. (H.265+intelligence on +WDR +IR on): 8.6 W (12 VDC); 9.9 W (PoE)
Working Environment	• Operating Temperature : –30 °C to +60 °C (–22 °F to +140 °F) • Operating Humidity : ≤95% • Storage Temperature : –40 °C to +60 °C (–40°F to +140°F)
Ingress Protection	IP67, IK10 (optional)
Dimension	(W x D x H) : 23.85 x 9.07 x 9.07 cm
Net Weight	0.76 KG
